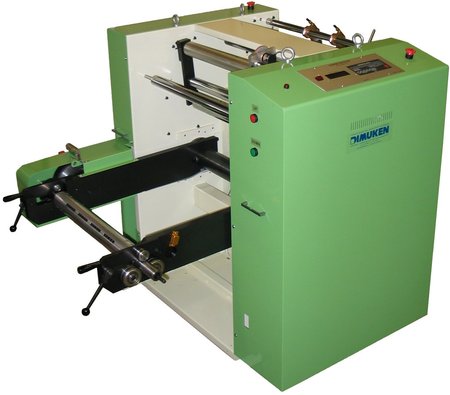

Dimuken Unwinder DC8406-2250

The Dimuken Unwinder model DC 8406-2250 is designed to operate in a stop - start situation at the commencement of a reel fed continuous off-line finishing process. It can be used in conjunction with a Laser Printer, Hologram Encoder, Rotary Diecutter, or other free standing finishing module. The modular design of the system allows the unit to be moved to suit the requirements of the job and production location.


Usage

This machine is designed to operate on a slack web principle. A Tandem Control Unit (TCU) web sensor is placed at the out-feed side of the unit so that when there is sufficient paper on the TCU the Unwinder will stop and only start up again as the slack in the web is taken up by the following machine.


Features

  • • Motorized reel lift
  • • Reel braking by means of a powder brake
  • • Tandem Control Unit (web sensor) to interface with the following machine
  • • Heavy duty wheels allow for easy relocation
  • • Optional Perforating and Slitting wheels can be supplied for in line processing of the reel
  • • Max. Reel Diameter is 1,270mm
  • • Max. Web Width is 52cm
  • • Paper Weights from 40gms to 200gms
