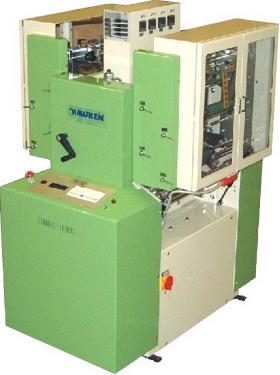

Dimuken Hologram Encoder DC-8614-H4

The Dimuken Hologram-Encoder DC-8614 is a free standing model capable of simultaneously running four independant streams of registered holographic foil. The Hologram Encoder can be installed in conjunction with other off-line finishing machines which use sprocket fed paper.

The Hologram-Encoder has been designed to execute many processes on sprocket fed paper. The facility to apply Holograms or security foiling to documents requiring high security such as cheques, bonds, certificates, coupons, deeds, degree certificates, diplomas, driving licences, event tickets, exam certificates, gift certificates, gift vouchers, ID cards, lottery tickets, residence permits, security labels, stock certificates, share certificates, sports tickets, travellers cheques, visas, warrants, forms and mailers is becoming more imperative to avoid document fraud and help prevent counterfeiting. All these processes also enhance the product to give greater value and visual impact.



Basic Configuration

  • • Swing up tooling head allows instant and convenient access to the foiling heads
  • • Four position heated foiling registration system to allow single or simultaneous running of up to 4 separate registered image holographic foils
  • • Four heated foiling heads individually adjustable for temperature and position
  • • Individual foil unwind and rewind stations for positive foil feeds
  • • Easily adjustable sensor mounting blocks to read side or vertical registration marks
  • • Optional tooling heads for MICR/OCR or Gothic numbering, blind embossing or imprinting from Ribbon
  • • Regular and irregular web draw lengths selected by push button
  • • Fine impression control ensures perfect foiling results
  • • 22" max web width
  • • Web draw lengths up to 24" in 1/72" increments
  • • Mechanical foil release mechanism eliminates the need for an air blast to separate the foil from the sheet
  • • Micro Processor Controls give accurate response and rapid set up
  • • Operator friendly Soft Touch Control Panel and Digital Display Screen
  • • Free standing and mounted on heavy duty casters allowing the machine to be re-sited to suit production requirements
  • • Sturdy frame and body construction gives quietness of operation and long life

Options

  • Registered Holograms
  • • Random Pattern Holograms
  • • Conventional Hot Foil Stamping
  • • M.I.C.R., O.C.R. Encoding
  • • Gothic Numbering
  • • Blind Embossing
  • • Imprinting from Ribbon
  • • Specialized Products




Product Videos:
• Hologram Encoder DC-8614-H4
• Hologram Encoder DC-8614-H4
• Hologram Encoder DC-8614-H4 - Running 4up 80mm Wide Dies
• Hologram Encoder DC-8614-H4 - Applying Kinegrams onto Polycarbonate
• Hologram Encoder DC-8614-H4 - Foiling 8 hologram streams
• Hologram Encoder DC-8614-H4 - Running a plain web roll to roll
• Hologram Encoder DC-8614-H4 - Roll to Roll - Applying Demetalised Holograms
• Hologram Encoder DC-8614-H4 - Roll to Fold - Applying Demetalised Holograms



View the Hologram Encoder DC-8614-H4 PDF Leaflet HERE
