The Dimuken DC-1603 Hologram Applicator machine is designed for the precise and reliable application of registered hologram, dovids and kinegram security images onto documents and products requiring advanced anti-counterfeit protection.

This highly versatile hologram stamping machine can be configured to operate with either sheet-fed materials or continuous web-fed substrates, allowing it to integrate easily into a wide range of security printing and document production environments.

Each foiling station can be supplied with one or two precision foiling heads, making the DC-1603 an efficient kinegram applicator capable of accurately positioning security devices on a wide variety of substrates. Each head incorporates independently controlled foil feed and registration systems, ensuring the accurate placement of registered hologram or kinegram images.

The DC-1603 is widely used as a passport hologram applicator and for other secure government and financial documents where precise positioning of security features is essential.

Typical applications for this security document hologram application system include:

• Passports

• National ID cards

• Visas

• Security certificates

• Bank cheques and drafts

• Event and travel tickets

• Gift vouchers

• Scratch cards

• Product authentication labels

• Brand protection labels

By combining high-precision hologram stamping technology with flexible sheet and web feed configurations, the Dimuken DC-1603 provides a reliable solution for organisations involved in security printing, document authentication, and anti-counterfeit protection.

Three Versatile Operation Modes

• Sheet Fed Configuration

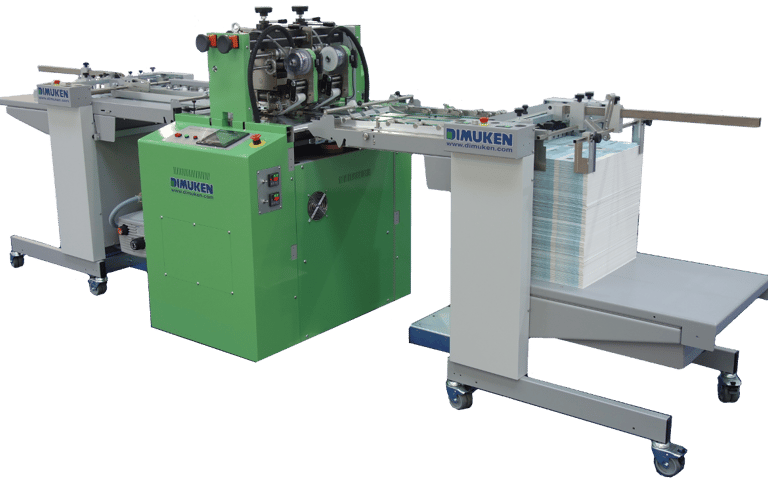

  When fitted with the optional Sheet Fed stream feeder and stacker units the substrate material is delivered to the foiling station via a vacuum transport belt which accurately feeds the material in preprogrammed steps to the foiling head where the image is accurately stamped in the required location.

• Pinfeed Drive Unit
  When fitted with the optional Pin Feed Unit a continuous sprocket hole driven pin fed web can be run through the machine in preprogrammed steps via tractor pin feeds.

• Pinless Drive Unit

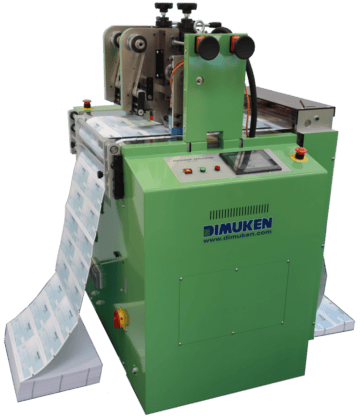

  When fitted with the optional Pinless Drive Unit a continuous web (with no sprocket holes) can be run in print mark mode, the web is accurately fed by nip rollers to the correct location for applying the hologram using a registration mark printed on the web.

Standard Configuration

• Fine impression control ensures perfect foiling results on any material substrate

• Heated foiling heads can be individually adjusted for temperature & position with precision

• Tooling head design allows instant and convenient access to the foiling heads

• Independent stream foil registration system allows simultaneous running of separate foil feeds

• Individual foil unwind and rewind stations for positive foil feeds

• Mechanical foil release mechanism to separate the foil from the sheet

• Regular and irregular impression draw lengths programmed via an operator friendly Touch Panel Display Screen

• Optional Sheet Fed stream feeder and stacker units

• Optional tractor pin feed system for continuous web feed work

• Optional Print Mark System for pinless continuous web work

Options

• Sheet Fed stream feeder and stacker

• Pinfeed Drive Unit

• Pinless Drive Unit

Dimuken Hologram Applicator DC-1603 for Security Documents
